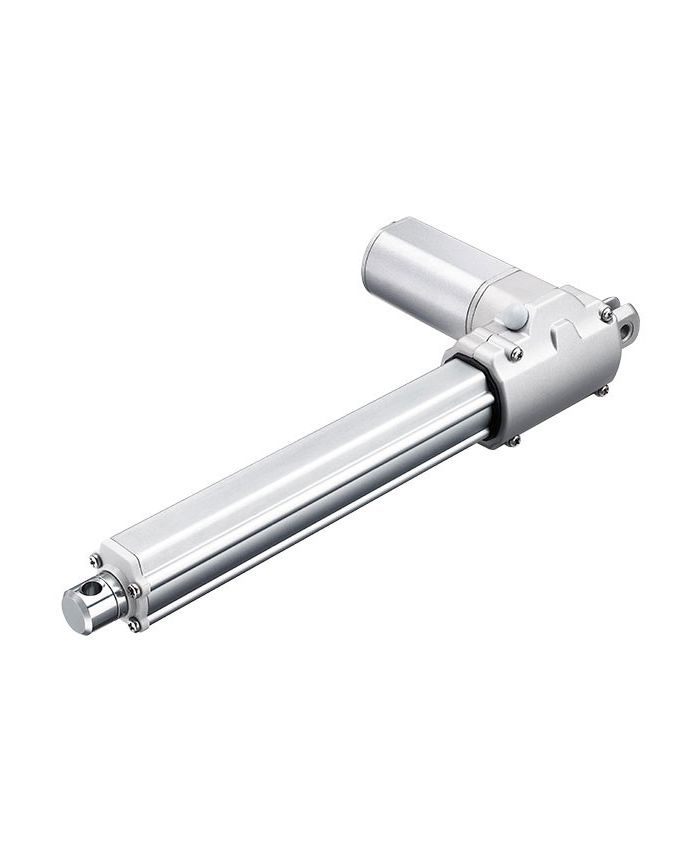

TiMOTION's TA4 series linear actuator is compact, quiet and powerful. It is designed to fit in an area specifically requiring a right angle motor and can be equipped with a Hall sensor for feedback. Certifications for the TA4 linear actuator include IEC60601-1, ES60601-1, UL73 and EMC. In addition, the TA4 is available with an optional IP54 or 66 rating.

General Features

• Max. load: 3,500N (push); 2,000N (pull)

• Max. speed at max. load: 3.1mm/s

• Max. speed at no load: 36.9mm/s

• Retracted length: ≥ Stroke + 140mm

• IP rating: IP66

• Certificate: IEC60601-1, ES60601-1, UL73, EMC

• Output signals: Hall sensors

• Voltage: 12/24V DC; 24V DC (PTC)

• Color: Silver

• Operational temperature range: +5°C~+45°C

• Low noise
